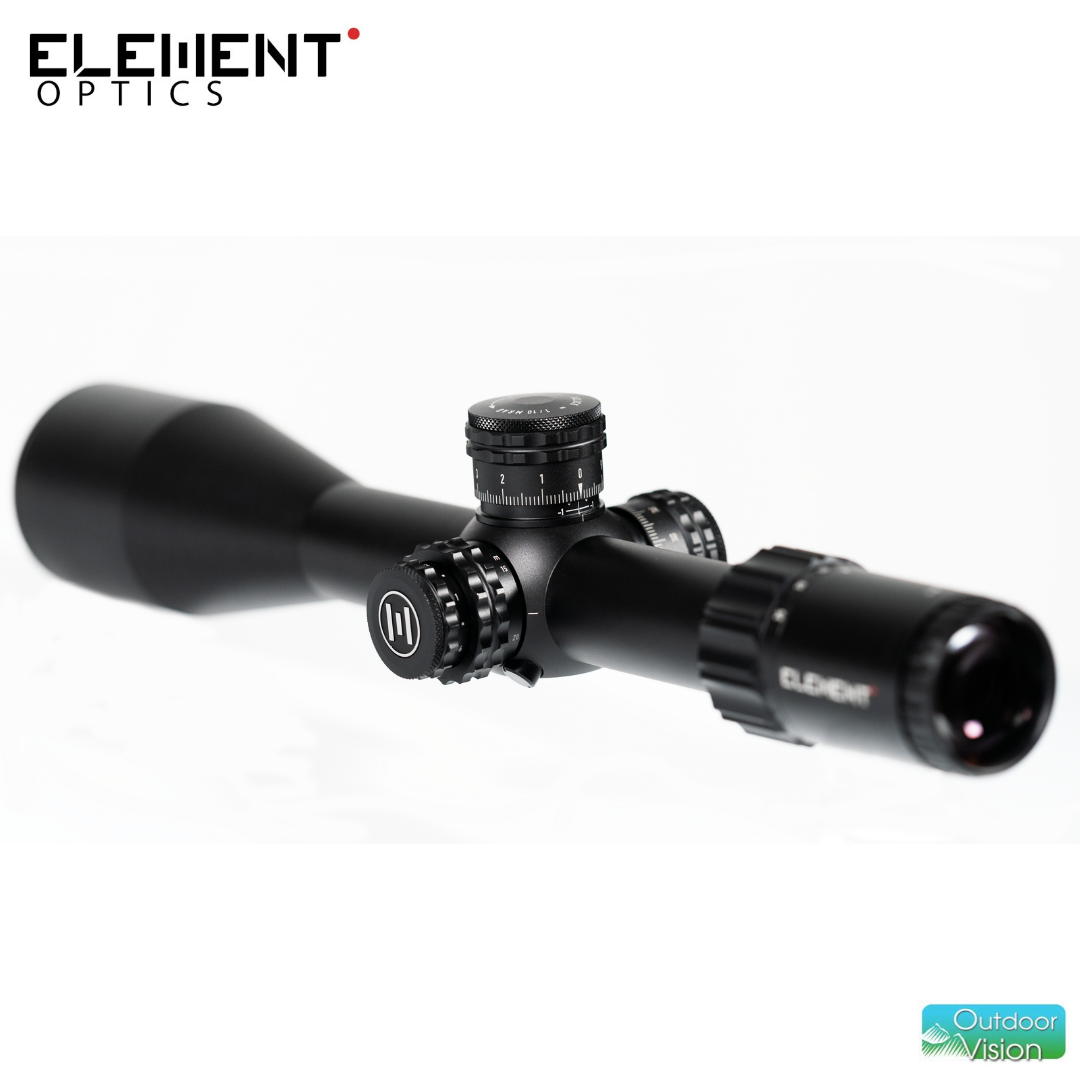

กล้องติดปืน Element Optics รุ่น Titan FFP 5-25×56
Meet the Game Changer: The TITAN. Like the Helix, the Titan puts your money where it matters, with precision-engineered internals and a turret system superior to other products in the same price class. To make things even better, we’ve gone one step ahead and given the Titan a 34mm tube and ED glass. The 34mm tube allows for a greater elevation/windage range when dialing for those extreme distance shots, and the 56mm Objective lens with ED glass provides you with an ultra-sharp, clear image with a large field of view. The turret system has been upgraded from your stock-standard sporting optic to feature stainless steel internals for resistance against wear-and-tear when dialling regularly – something that modern shooting disciplines require. The tool-free turrets and zero-stop mechanism give you high end features without breaking the bank, and the First Focal Plane reticle means the reticle subtensions remain true at any magnification.
| MAGNIFICATION RANGE | 3-18x | 5-25x | ||
| TUBE DIAMETER | 34mm | 34mm | ||
| OBJECTIVE LENS DIAMETER | 50mm | 56mm | ||
| EXIT PUPIL | 16.67-2.78mm | 11.2–2.1 | ||
| EYE RELIEF | 4 Inches | 3.74-3.54 Inches | ||
| FIELD OF VIEW | @100yds: 41-6.8ft @100m: 13.75-2.28m | @100yds: 24.1ft-4.9ft (4.6°-0.92°) | ||
| CLICK VALUE | 1/4 MOA | 1/10 MRAD | 1/4 MOA | 1/10 MRAD |
| (25 MOA / REV) | (10 MRAD / REV) | (25 MOA / REV) | (10 MRAD / REV) | |
| ELEVATION ADJUSTMENT RANGE | 150 MOA | 43.6 MRAD | 90 MOA | 26.2 MRAD |
| WINDAGE ADJUSTMENT RANGE | 50 MOA | 14.5 MRAD | 50 MOA | 14.5 MRAD |
| MINIMUM PARALLAX | 10 YDS | 10 METERS | 15 YDS | 15 METERS |
| LENGTH | 14.57 Inches | 370mm | 15.16 Inches | 385mm |
| WEIGHT | 34.4oz | 976gr | 39oz | 1105gr |
| น้ำหนัก | 1500 g |
|---|---|
| Reticle | |
| Model | |
| OptMag | |
| Obj | |
| ระยะ-parallax | 15Yd – infinity |
| Parallax Adj | |
| ไฟเส้นเล็ง | yes |
| ความยาว-mm | 385 mm |
| ท่อกล้อง | |
| น้ำหนักสินค้า-g | 1105 g |
| ท่อนอกเลนส์ตา-mm | – |
| ท่อนอกเลนส์วัตถุ-mm | – |
